Feature:

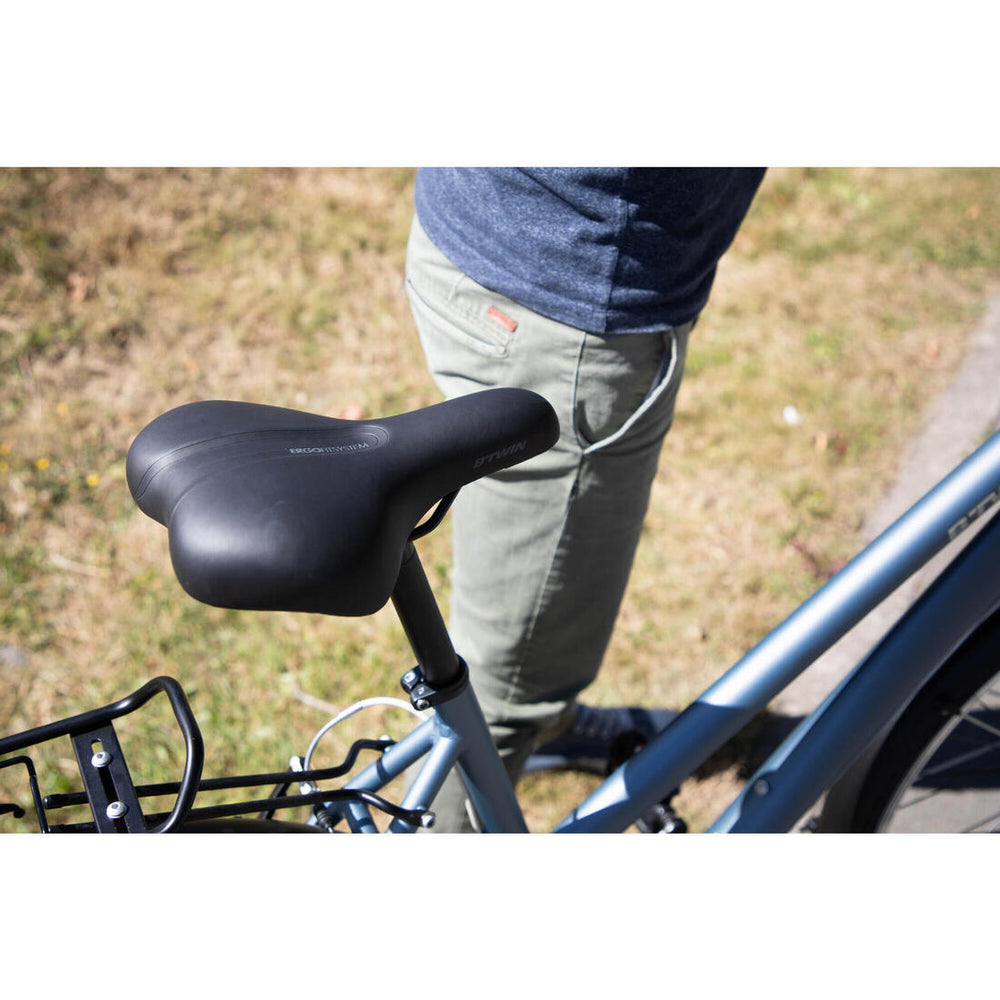

This saddle features traditional foam padding that provides firm support.Perfect for journeys of up to 1 hour, it maintains your posture at a 90° angle whilst minimising overheating.
Removal/Assembly
Loosen the seat post clamp using a 5 mm Allen key.Remove the old saddle, fit the rails of the new one, adjust the rearward position and level, then tighten to 6-8 Nm.
1. Determining the saddle height (part 1):
Step 1: Get a hardback book and a pencil.
Step 2: Stand barefoot with your heels against a wall and your feet apart (15-20 cm).
Step 3: Slide the book between your legs to your perineum.
Step 4: Mark the top of the book on the wall.
Step 5: Measure from the floor to the mark.
This height corresponds to your inseam, which is essential for choosing the right size bike.
1. Determining the saddle height (part 2):
Adjusting your saddle correctly is easy!
- Inseam measurement (in cm) × 0.883 = height to be adjusted.
- For example:89 cm × 0.883 = 78.6 cm.
This distance is measured between the bottom bracket and the top of the saddle.
2. Adjusting the saddle angle:
Before setting off, check the angle of your saddle.
Use a spirit level on the front part.
Ensure that the saddle is completely horizontal.
Then test and adjust it for smooth, comfortable pedalling.
3. How to measure your sit-bone width
Choosing the right saddle starts with a simple measurement:
- Take two pieces of corrugated cardboard and place them on a stool.
- Sit on them, straight up, and press down hard for one minute.
- Stand up:two imprints should appear.
- Connect the centres of the imprints with a ruler.
This number is the distance between your sit bones, which is essential for finding the right saddle.
3. Adjusting the saddle setback:
A good saddle position = no knee pain
Sit on the bike and lean back to stay upright.
Fix your feet in place and set the crank to horizontal.
Check the knee-pedal alignment → adjust the saddle if necessary.
How to choose your bike saddle
The 90° angle is ideal for a city cyling, ensuring good balance in your back.We have written a comprehensive article on this subject, which is available online, to provide you with further guidance on choosing your saddle.
Compatibility:
Compatible with standard clamp-style seat posts and 7 mm rail seat posts.
