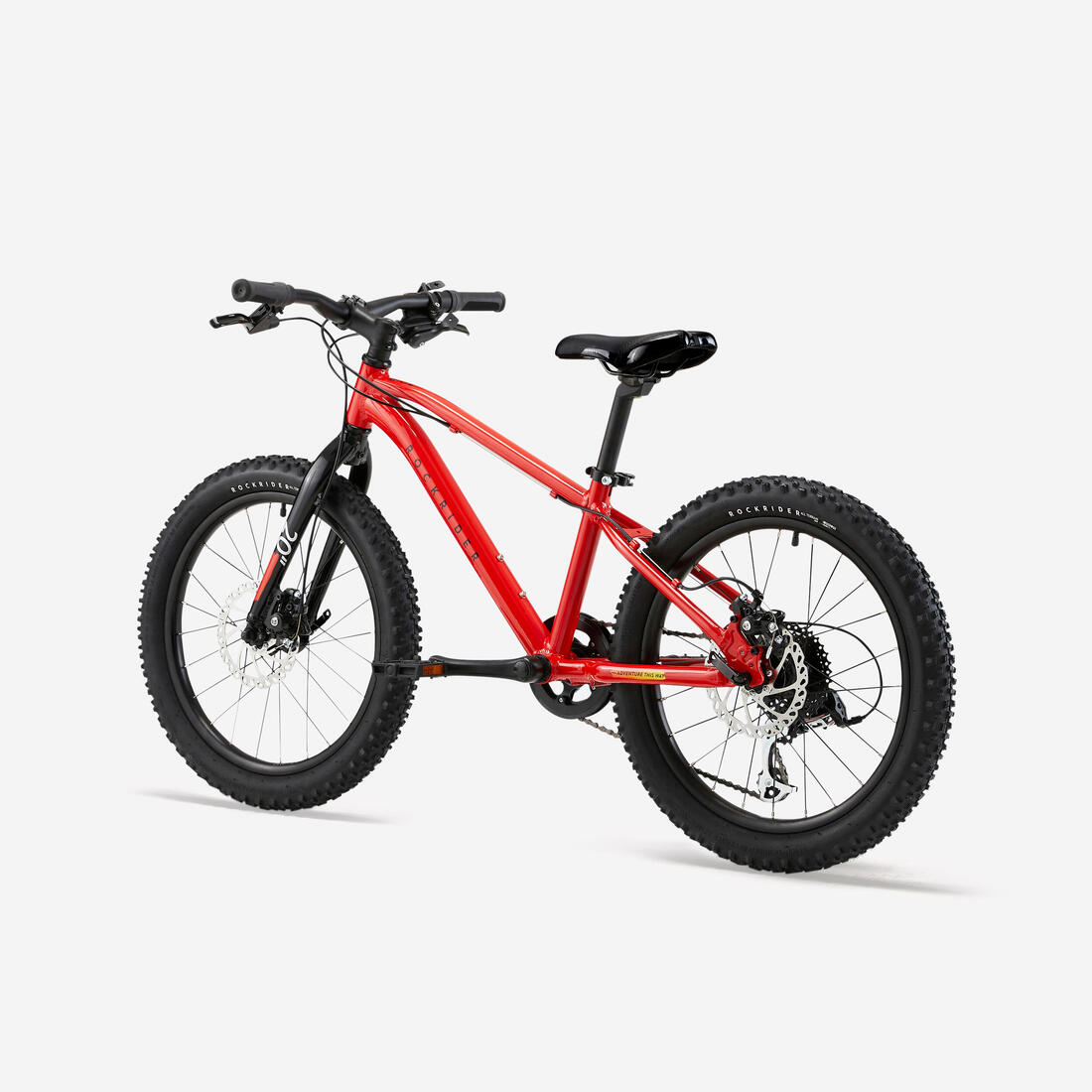

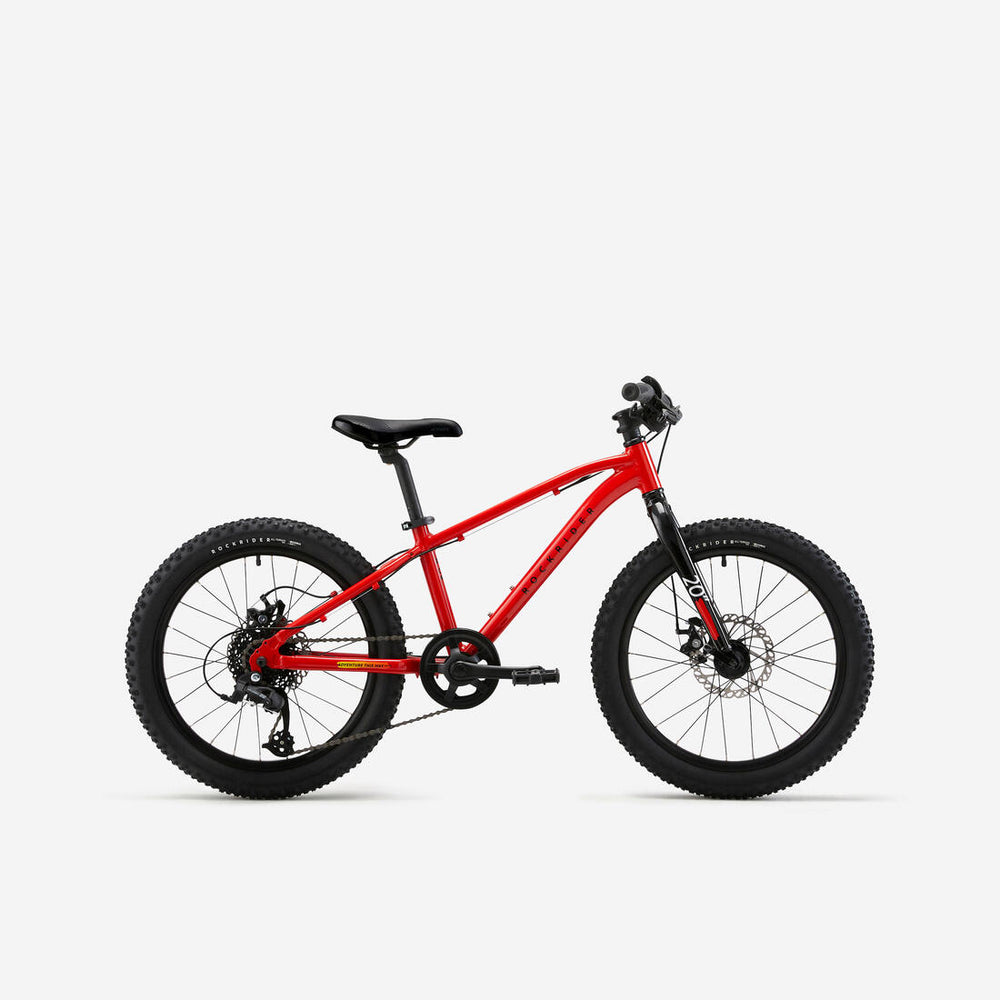

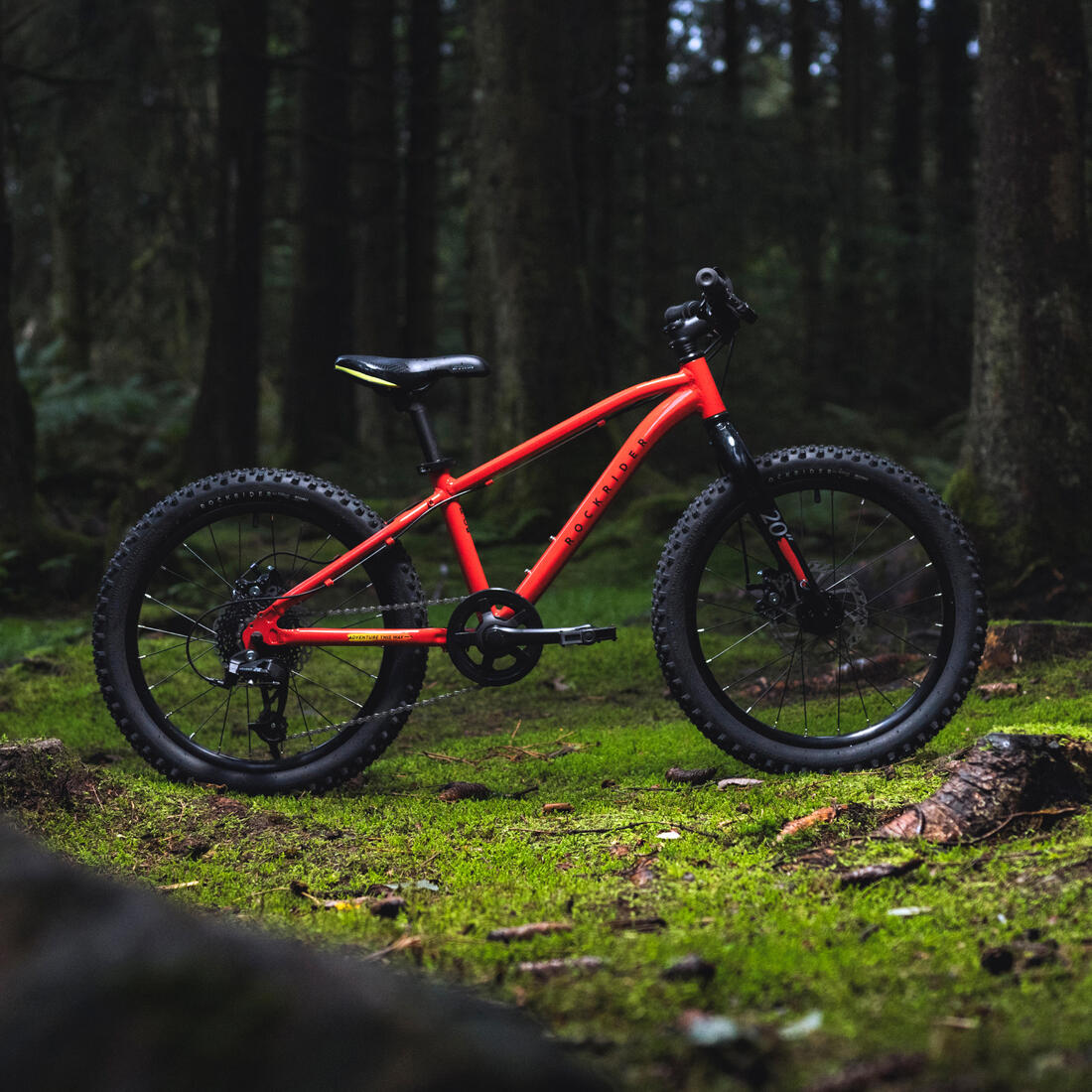

We have designed this mountain bike for children ages 6 to 9 (120 - 135 cm tall) who want to perfect their MTB skills. Its main asset is its light weight!
A lightweight frame for committed mountain biking:
Our engineers designed this aluminium frame to make this a lightweight bike, under 10 kg.
Very sloping for better handling on challenging terrain.
There are also 2 inserts on the frame so that you can attach a bottle cage for longer rides.
A rigid fork is a choice:
There is no suspension fork on this 20" EXPL 900 model.
The goal is to save weight without compromising on shock absorption.
To keep a suspension effect, we used a new pair of tyres with a wide cross-section of 2.2.
Cushioning and traction guaranteed.
A 8-speed drive train designed for kids:
This bike is equipped with our innovative Easytrigger shifter, designed to make it easy to shift between the 8 speeds.

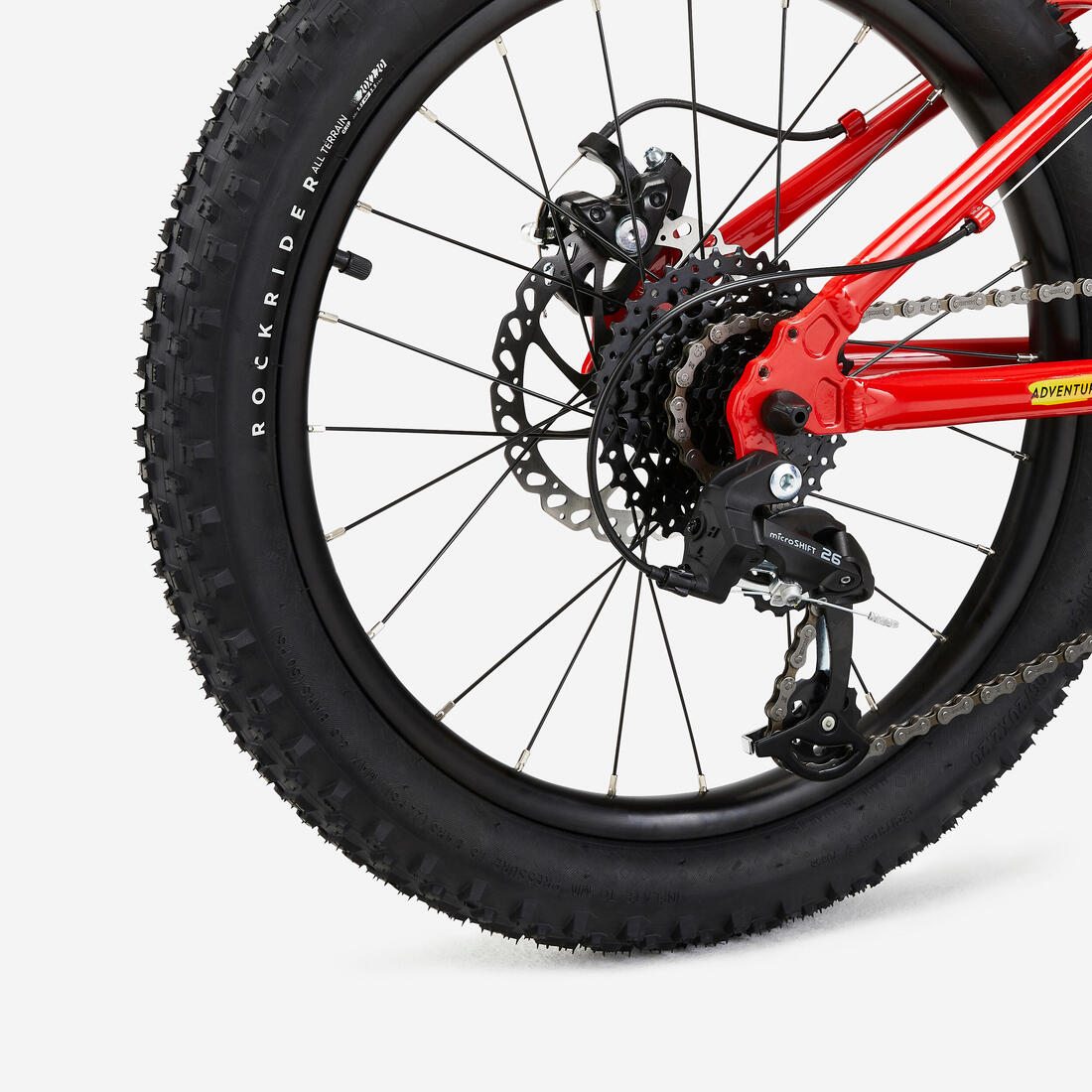

The derailleur allows you to switch gears on the 11/34 freewheel.

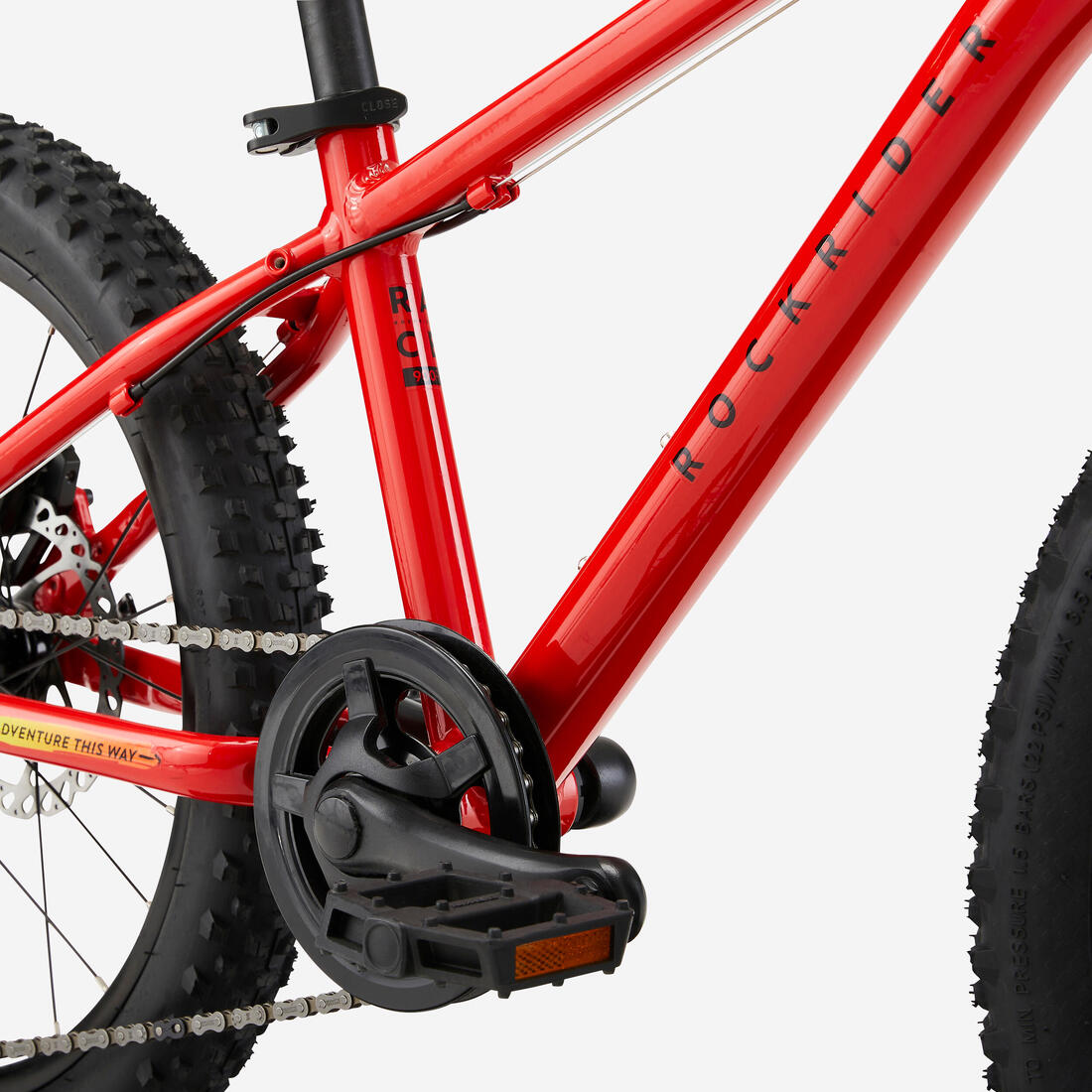

The 32-tooth chainset has 140 mm cranks and is equipped with a double chainguard to prevent derailment.
Controlled braking:

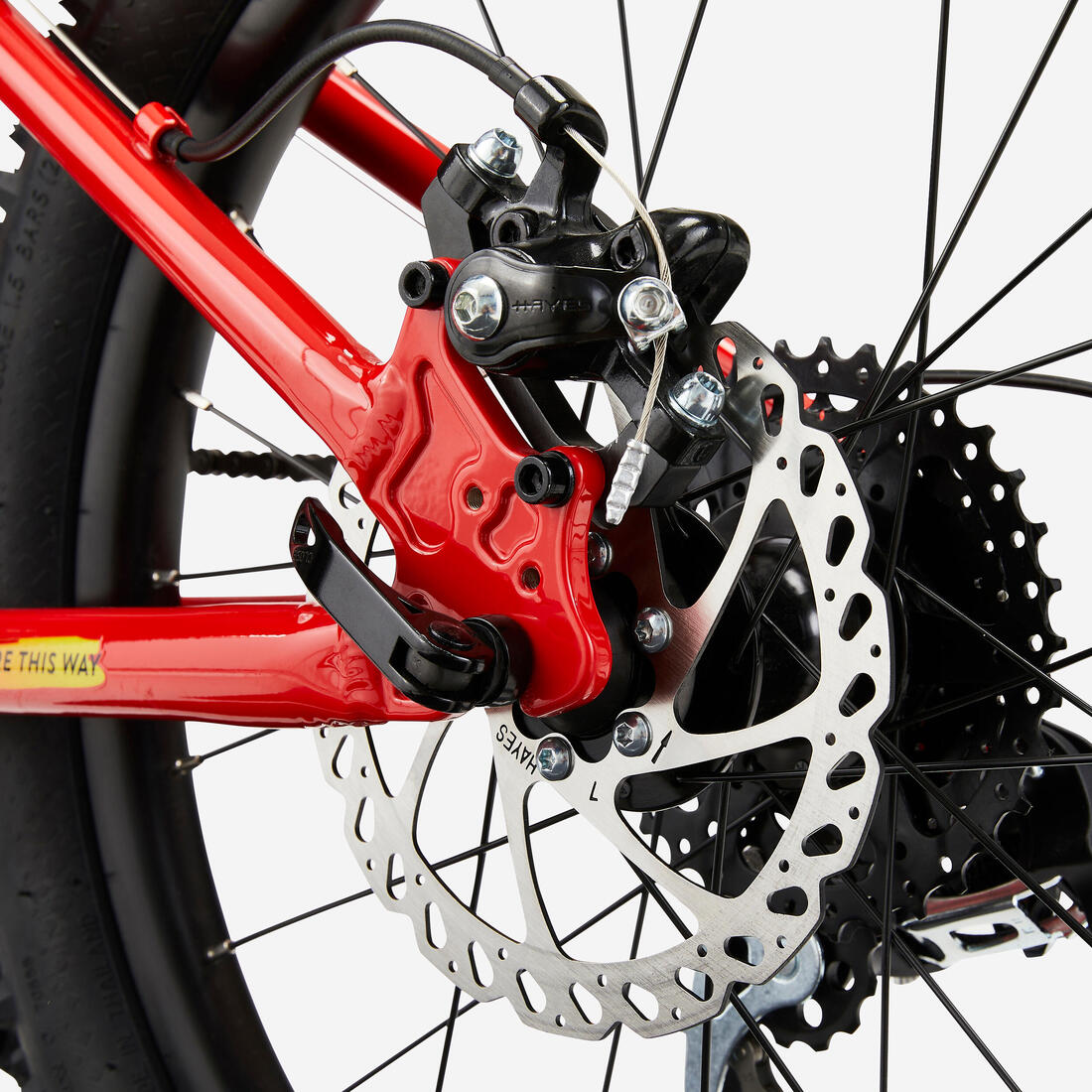

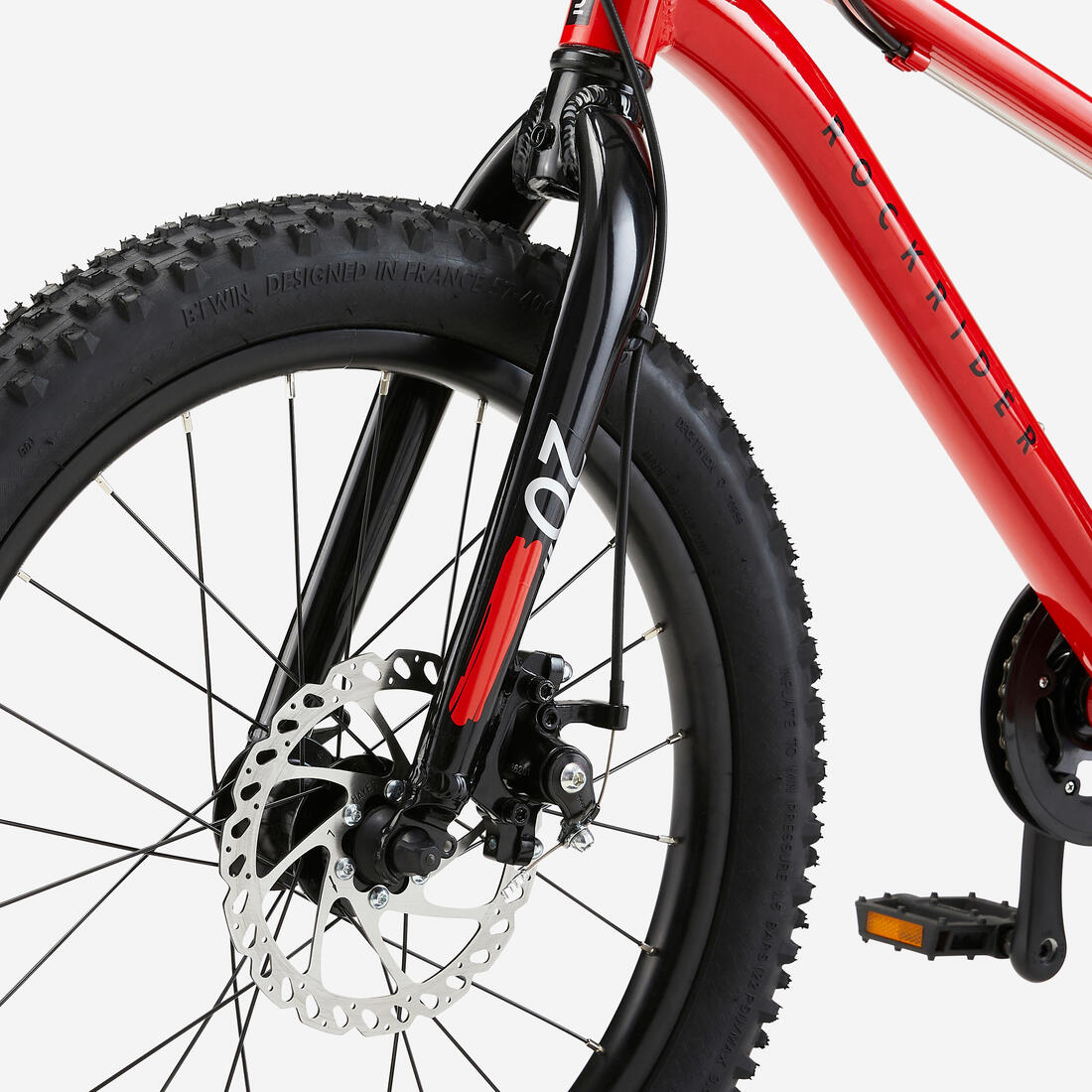

We have equipped the bike with front and rear mechanical disc brakes for progressive, powerful braking.
The discs are 160 mm.
Breaking in disc brakes:
A bedding-in process is required. On a flat, dry road, perform 3 sets of 10 progressive brake applications at increasing speeds.
1) Ride at 15 km/h, brake down to 5 km/h, and repeat 10 times.
2) Ride at 20 km/h, brake down to 5 km/h, and repeat 10 times.3) Optional (kid's bike):
Ride at 25 km/h, brake down to 5 km/h, and repeat 10 times.Between each step, release and ride for a few dozen metres in order to ventilate the disc.This bedding-in process optimises the pad/disc adhesion.
A comfortable cycling position:

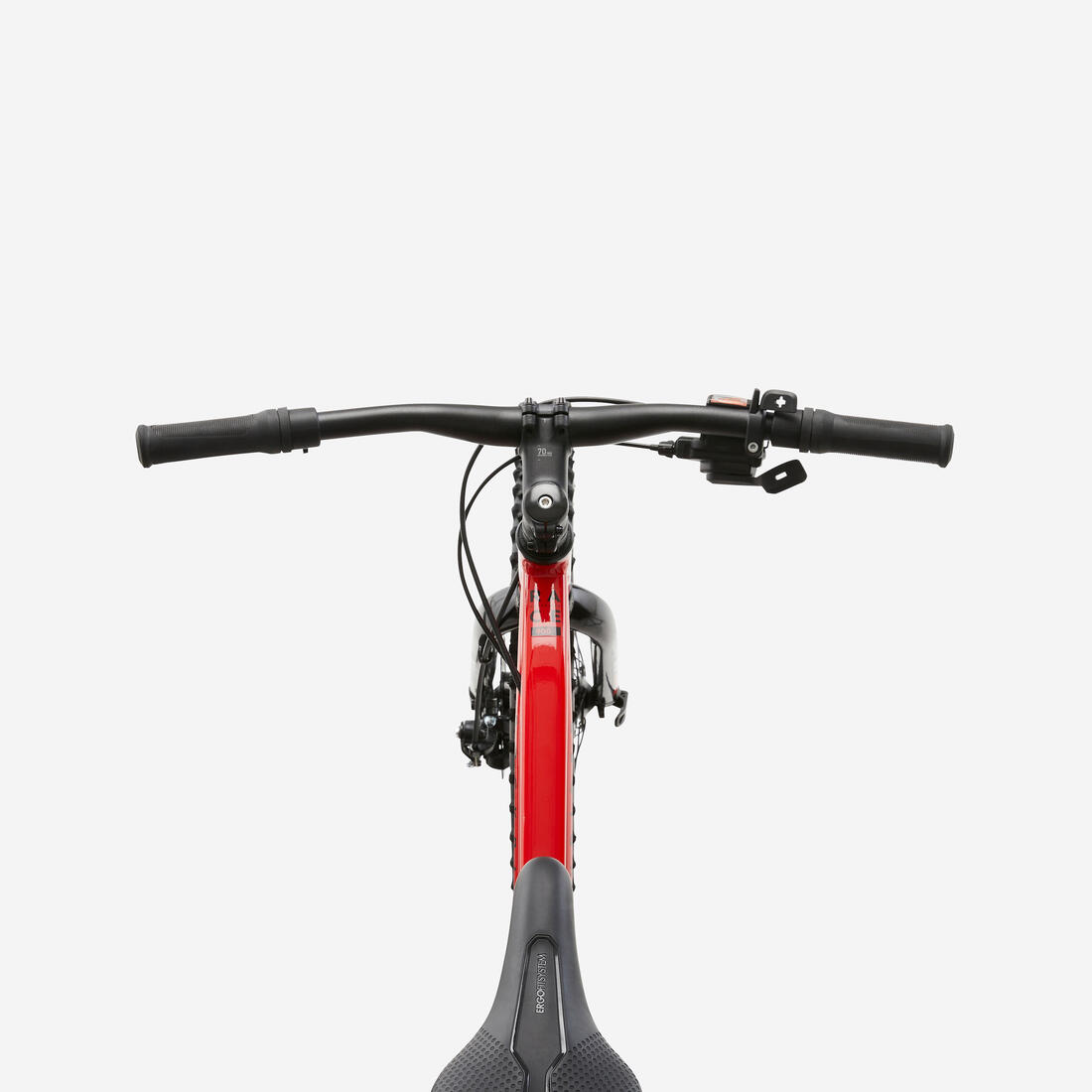

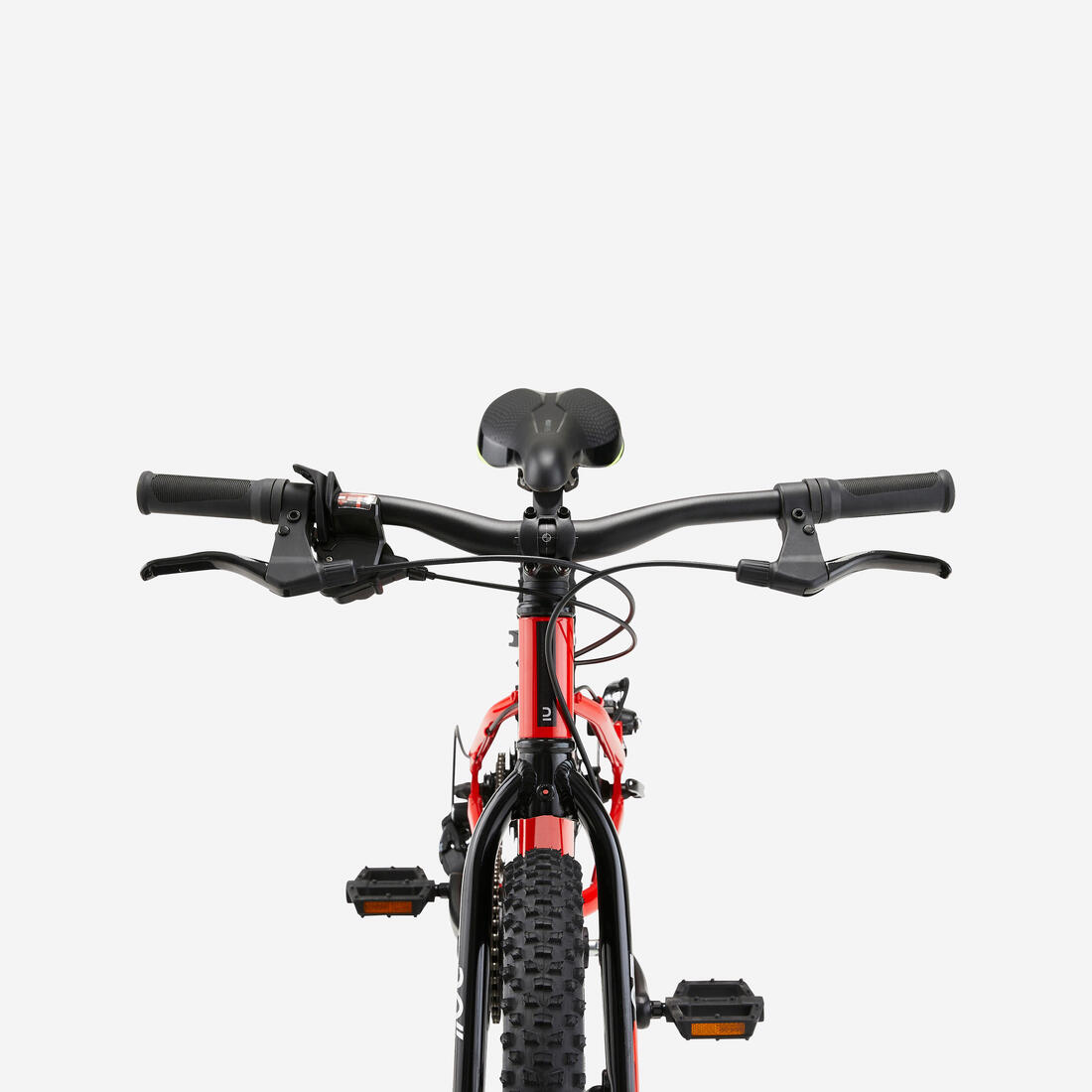

The 580 mm oversize handlebars provide stability on descents,
good balance when standing, and improved handling.
This handlebar width also allows for better chest opening to optimise breathing.

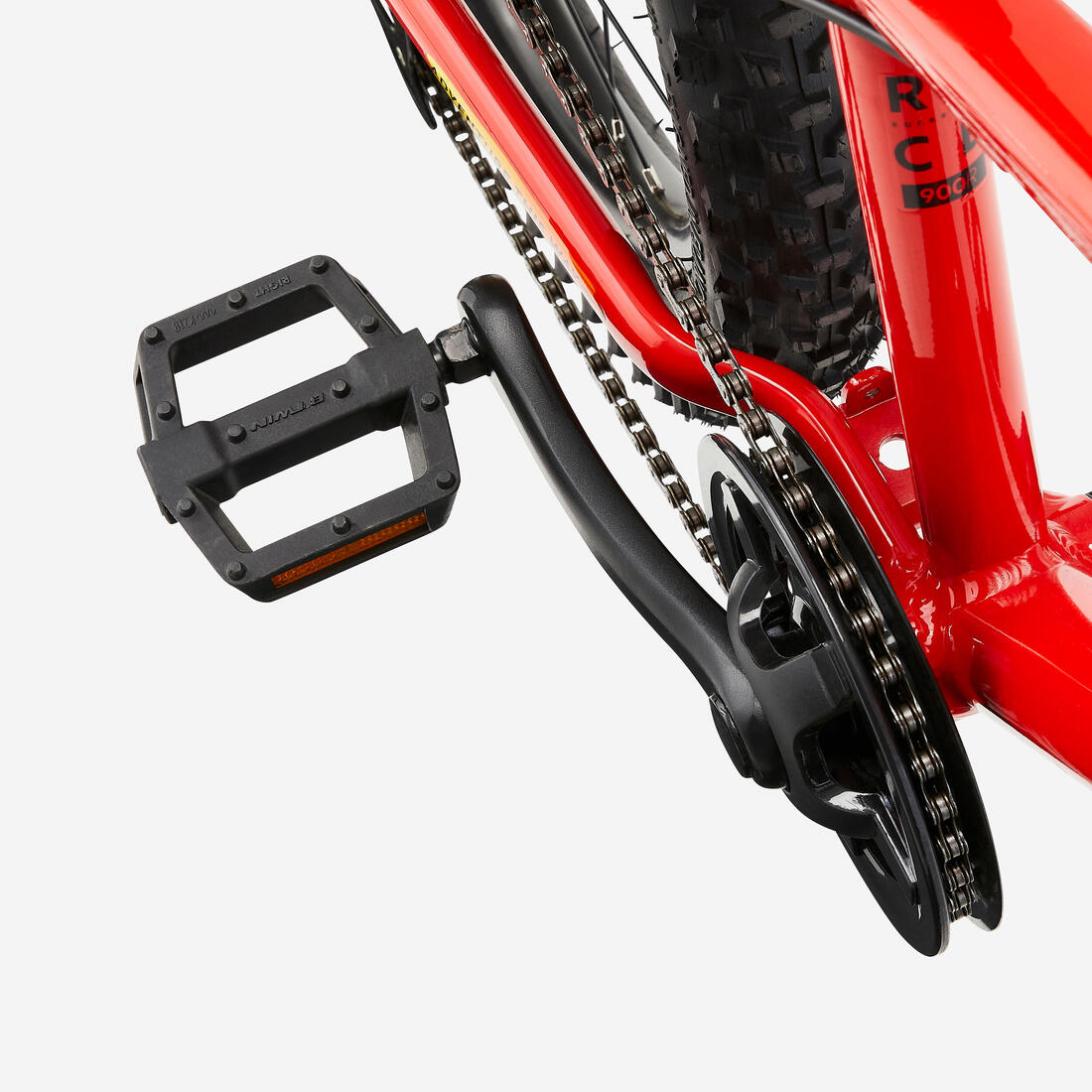

A chainset with cranks adapted to children:
The new chainset has a 140 mm crank that is designed for a child's leg length. This chainset allows you to start pedalling more easily.
20" wheels and all-terrain tyres:
To transport the bike, we’ve made it easy to remove and attach the front wheel. It is equipped with a quick-release system.
The 20" lugged tyres with a 2.2 cross-section provide traction and lots of comfort.
They help compensate for the lack of a suspension fork.
The recommended tyre pressure is displayed on the tyre sidewall (between 2 and 3.5 bar).
The 20" inner tube is compatible with cross-sections of 1.7 to 2.2.
It has a Schrader valve.
This bike can be equipped:
This MTB is equipped with a bell, lighting, wheel reflectors and platform pedals.
The frame is also compatible with other B'Twin accessories:
- front and rear mudguards
- kickstand
- bottle cage and bottle
- bag
- stabilisers
Dimensions of the bike ready to use:
Length: 140cm.Height: 76cm.
Width: 58cm.
Frame dimensions:
Top tube length: 450 mm
Seat tube length: 285 mm
Chainstay length: 360 mm
Seat post length: 300 mm
Head angle: 69°
Ordering online:
For smoother shipping, our bikes come with their pedals removed and the handlebar unscrewed (instructions and tools are supplied)
Weight:
9.9 kg
Photos non-binding:
For the drive train parts (freewheel and derailleur), the photos or videos provided on the product description show a particular model of derailleur and freewheel. However, because of procurement issues, an equivalent derailleur and cassette from a different brand may be present on the bike.
Look after your child's bike!
Look after your child's bike so that it's always ready for a new adventure!
To ensure full maintenance, we recommend that you follow these 3 steps:
01 Degrease your drive train 02 Clean your bike 03 Lubricate your chain
3 steps that 3 require 3 products that can be found in our bike cleaning kit (8751194), that will become your best friend!
The bike weighs just 9.9 kg, with its aluminium components! With 8 speeds and lugged tyres, it's the perfect bike for improving at mountain biking.
